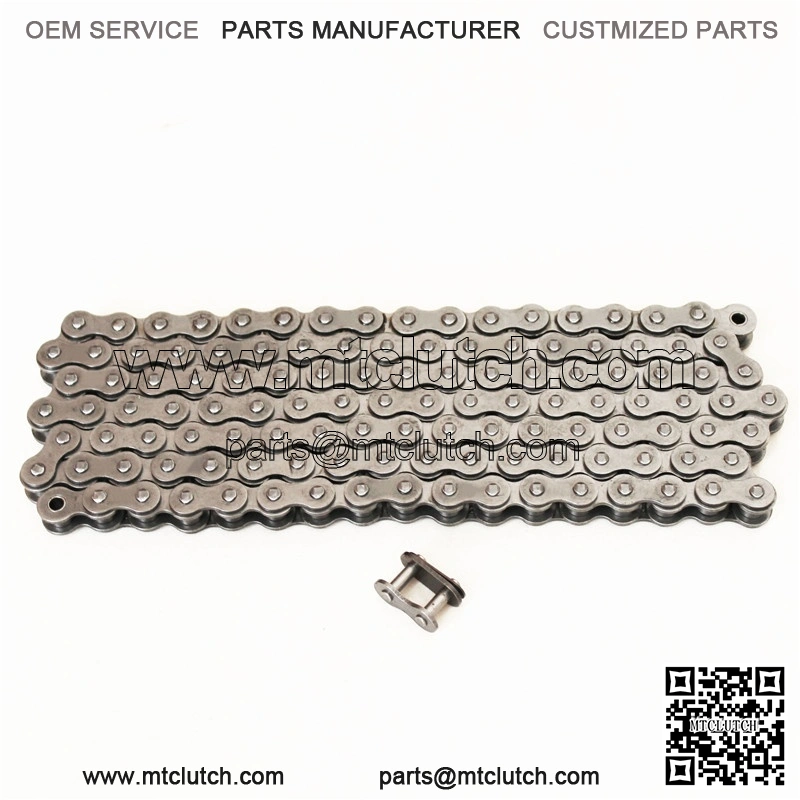

ANSI #40 Industrial Roller Chain
Pitch Size: 0.500 Inch
Length: 10 Feet Box
Average Tensile Strength: 4000 lbs
Weight Per Foot: 0.415 lbs
CHAIN SPECIFICATIONS
Pitch Size (p) : 0.500 Inch
Roller Diameter (d1 max) : 0.312 Inch
Width Between Inner Plates (b1 min) : 0.309 Inch
Pin Diameter (d2 max) : 0.156 Inch
Pin Length (L max) : 0.654 Inch
Pin Length (Lc max) : 0.701 Inch
Inner Plate Depth (h2 max) : 0.472 Inch
Plate Thickness (T max) : 0.059 Inch
Average Tensile Strength: 4000 lb
Material: Carbon Steel
Length: 8
Weight Per Foot: 0.415 lbs
