48″ Deck Double Pulley Assembly for Cub Cadet 2518-48 GT2186-48 GT2521-48 301

SKU PDP.04998 756-3116, 756-307, 941-0524A, 741-0524, 741-1122 Category Tags ,

48″ Deck Double Pulley Assembly for Cub Cadet 2518-48 GT2186-48 GT2521-48 301

Premium Quality Replacement Part

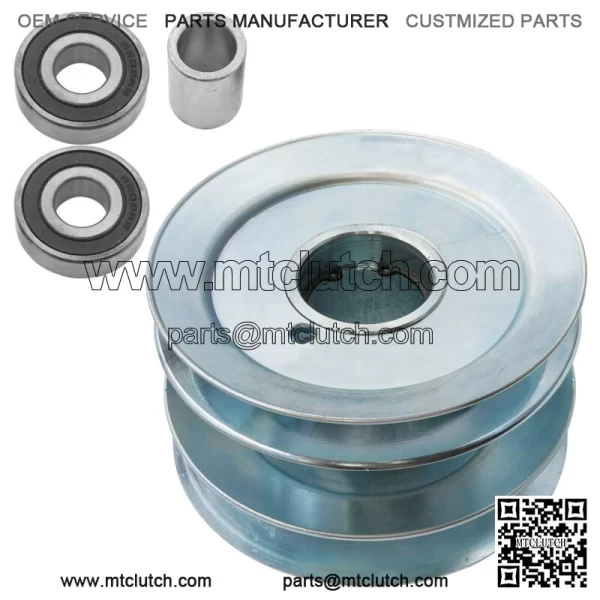

Double Pulley with Ball Bearing & Spacer Assembly
Compatible With Cub Cadet:
301 (190-301-100) 48″ Mower
2518-48 (13A-288M100, 13A-208M100) Tractor
GT2186-48 (13A-298M712, 13A-298M710) Tractor
GT2521-48 (13A-278M710) Tractor
Order Includes :
1 x Double Pulley : 756-3116, 756-3071
2 x Ball Bearing: 941-0524A, 741-0524, 741-1122
1 x Spacer: 950-3132, 750-3132
2 x Snap Ring: 916-3020, 716-3020
Inner Diameter : 1.57 in – 40 mm
Outer Diameter : 2.87 in – 73 mm
Height: 2.86 in – 72.7 mm
Upper Pulley Width : 0.62 in -16 mm
Lower Pulley Width : 0.84 in – 21.5 mm
