Rear Upper Control Arm Pivot Shaft For Polaris Sportsman 570 18-25 / 5141387

Premium Quality Replacement Part
Rear Upper Left & Right Control Arm Pivot Shaft
Compatible with Polaris Models:
Sportsman 570 6×6 2018-2023 2025
Sportsman 570 EPS 2018-2023
Sportsman SP 570 2018-2019
Sportsman Touring 570 2018-2023
Sportsman X2 570 2018-2023
Sportsman 450 HO 2024
Sportsman 450 HO EPS 2024
Sportsman 450 Utility Edition HO 2024
Order Includes:
4 x Pivot Shaft: 5141387

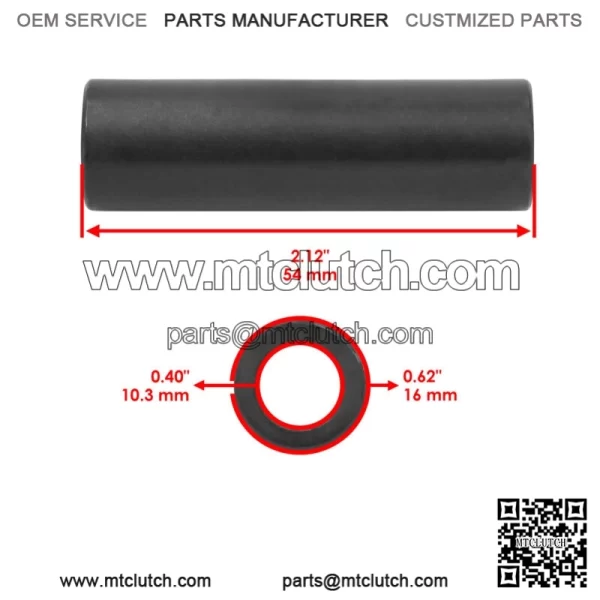

Length: 54 mm – 2.12 in
Inner Diameter: 10.3mm – 0 4 in
Outer Diameter: 16mm – 0 62 in
Note: Installs On Location (A) & (B) In Second Picture
Rear Upper Control Arm Part Number:
Left: 1025238-458, 1023359-458
Right: 1025239-458, 1023360-458
Rear Lower Control Arm Part Number:
Left: 1025240-458, 1015888-458, 1023570-458, 1015888-458, 1028708-458
Right: 1025241-458, 1015889-458, 1023571-458, 1015889-458, 1028709-458
Knuckle Part Number:
Left: 5139363, 5135563
Right: 5137436, 5135563
